EVE 105Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code
Specification
Battery brand: EVE
Battery model: LF105
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 105Ah
AC Impedance Resistance: ≤0.5mΩ
Weight: 1.98±0.1kg
Dimensions (mm): 200.5*130.3*36.7±0.5mm
Terminal: M4 Screw Hole
Cycle life: ≥3500 cycles (1C/1C, 25±2℃, SOC≥80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Continuous Charge/Discharge Current: 1C/1C
Pulse Charge/Discharge Ccurrent(30s): 2C/2C
Recommended SOC window: 10%～90%
Charging Temperature: 0℃~55℃
Discharging Temperature: -20℃~55℃
Download Document:
EVE 105Ah LiFePO4 Cell Product Specification
Product Application:
Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.
Product Feature:
- Highly automated production equipment to ensure battery consistency.
- Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance.
- Low internal resistance, high discharge rate, and stable discharge platform.
- Green environment, ISO14000 approval, products meet GB and UN criteria, and ROHS compliant.
- Long cycle life.
NOTE!

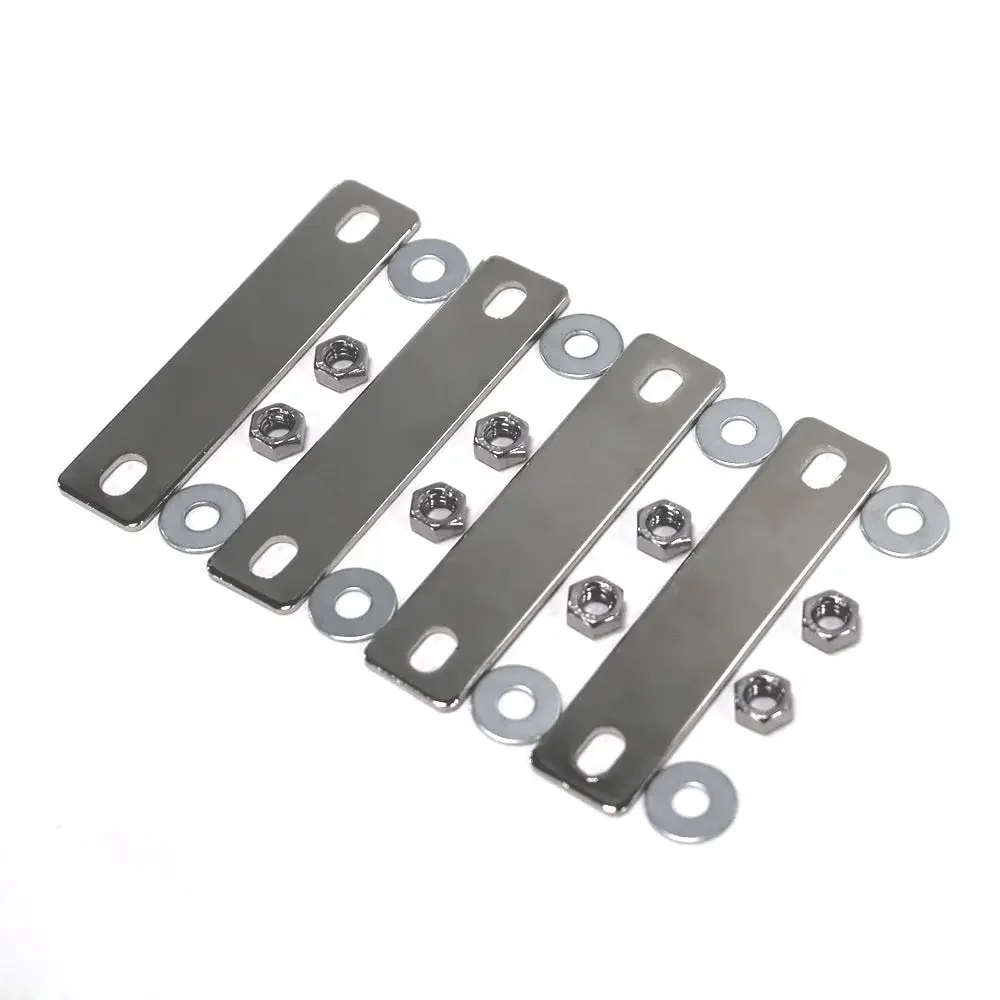

1. One Cell will come with 1 busbar, 2 screw caps, 2 shims for free. (e.g. 4 pcs Cells will come with 4 pcs busbars, 8 pcs screw caps and 8 pcs shims. )
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
